VAP - Vibrating sieves for presses feeding

Atomized powder screening unit for presses feeding.

The objective of this sieving application is to eliminate any dust agglomeration.

Construction features:
• Inclined flat bottom
• IP 65 moto-vibrator
• Fully automatic and independent operation

Use:
• Control sieving of atomized powders at press feeding

Advantages:
• Easy cleaning
• Quick installation
• Easy maintenance

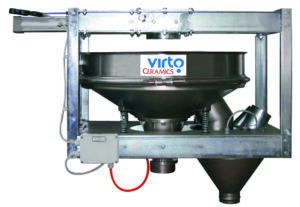

VAP 600 - 800

Technical features (600/800) :

  • Power: 0.48 kW
  • Centrifugal force, Kg: 420 / 640
  • Number of meshes: 1
  • Sieving surface, m2: 0.264 / 0.36
  • Weight, Kg: 125 / 145

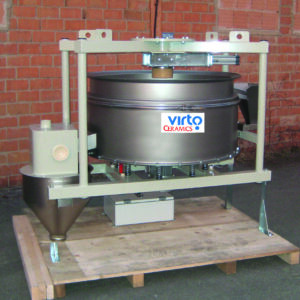

VAP 900 - 1200

Technical features (900/1200):

  • Power, kW: 0.73 / 1.25
  • Centrifugal force, Kg: 850 / 1237
  • Number of meshes: 1
  • Sieving surface, m2: 0.587 / 0.936
  • Weight, Kg: 290 / 435

VAP2 - Vibrating sieves for presses feeding​

Atomized powder screening unit for presses trolley feeding.

The objective of this sieving application is to eliminate any dust agglomeration.

Construction features:
• Totally open bottom for easy discharge
• Atex zone 22 certified, IP 65 side moto-vibrators
• Fully automatic and independent operation

Use:
• Control sieving of atomized powders at press feeding

Advantages:

  • Wide-sized discharge to exclude incrustations
  • Quick discharge
  • Easy cleaning
  • Quick installation

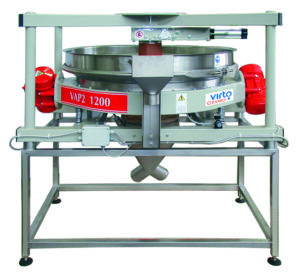

VAP2 800 - 900 - 1200

Technical features (800/900/1200):

  • Power, kW: 0.27+0.27 / 0.62+0.62 / 0.62+0.62
  • Centrifugal force, Kg: 840 / 1428 / 1428
  • Number of meshes: 1
  • Sieving surface, m2: 0.36 / 0.587 / 0.936
  • Weight, Kg: 150 / 330 / 380
