PZT - Iron removers for glaze

Pressure iron remover for liquids, with permanent magnets

Construction features:
• Stainless steel Aisi 304 body
• Quick fixation cover

Use:
• Iron removing from glazes

Advantages:
• Easy installation into the glazes production department
• High iron removing efficiency
• Easy cleaning

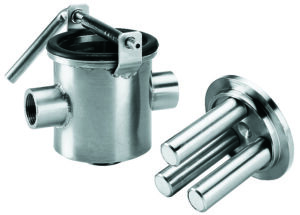

PZT 93 - 253

Technical features (93/253):

  • Magnetic bars: 3 x Ø 25 x 90 / 3 x Ø25 x 250
  • Max working pressure, bar: 0.5
  • Max working temperature, C°: 80
  • Nominal power, gauss: 12000
  • Weight, Kg: 3.1 / 4.8

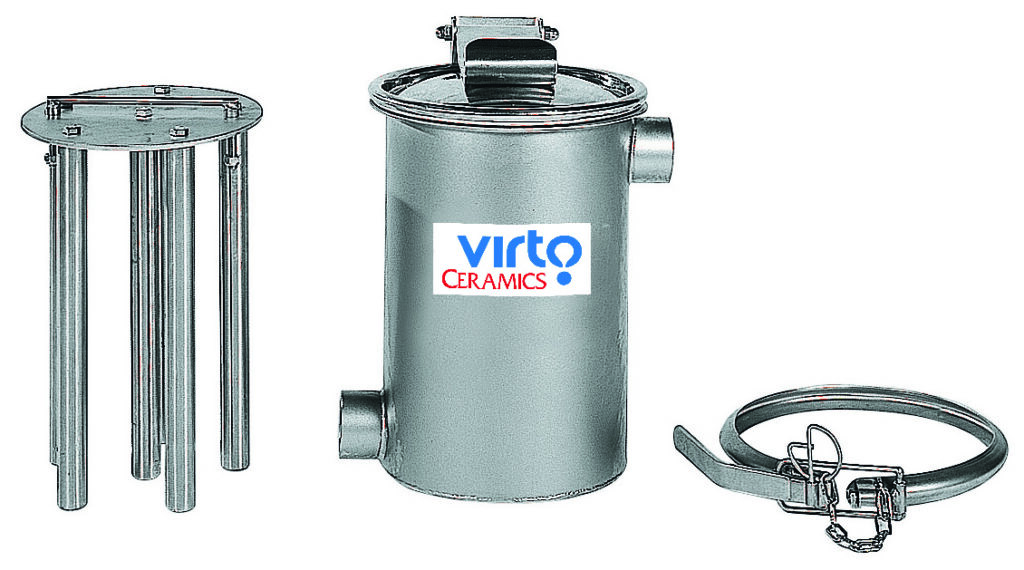

PZT 306 - PTP 200

Technical features (PTP200/PZT306):

  • Magnetic device: FPT200 / Neomidium bars (6 x Ø25 x 300)
  • Max working pressure, bar: 1.5
  • Max working temperature, C°: 60 with para gaskets; 100 with EPDM gaskets
  • Nominal power, gauss: 12000 / 6000
  • Weight, Kg: 20 / 15
